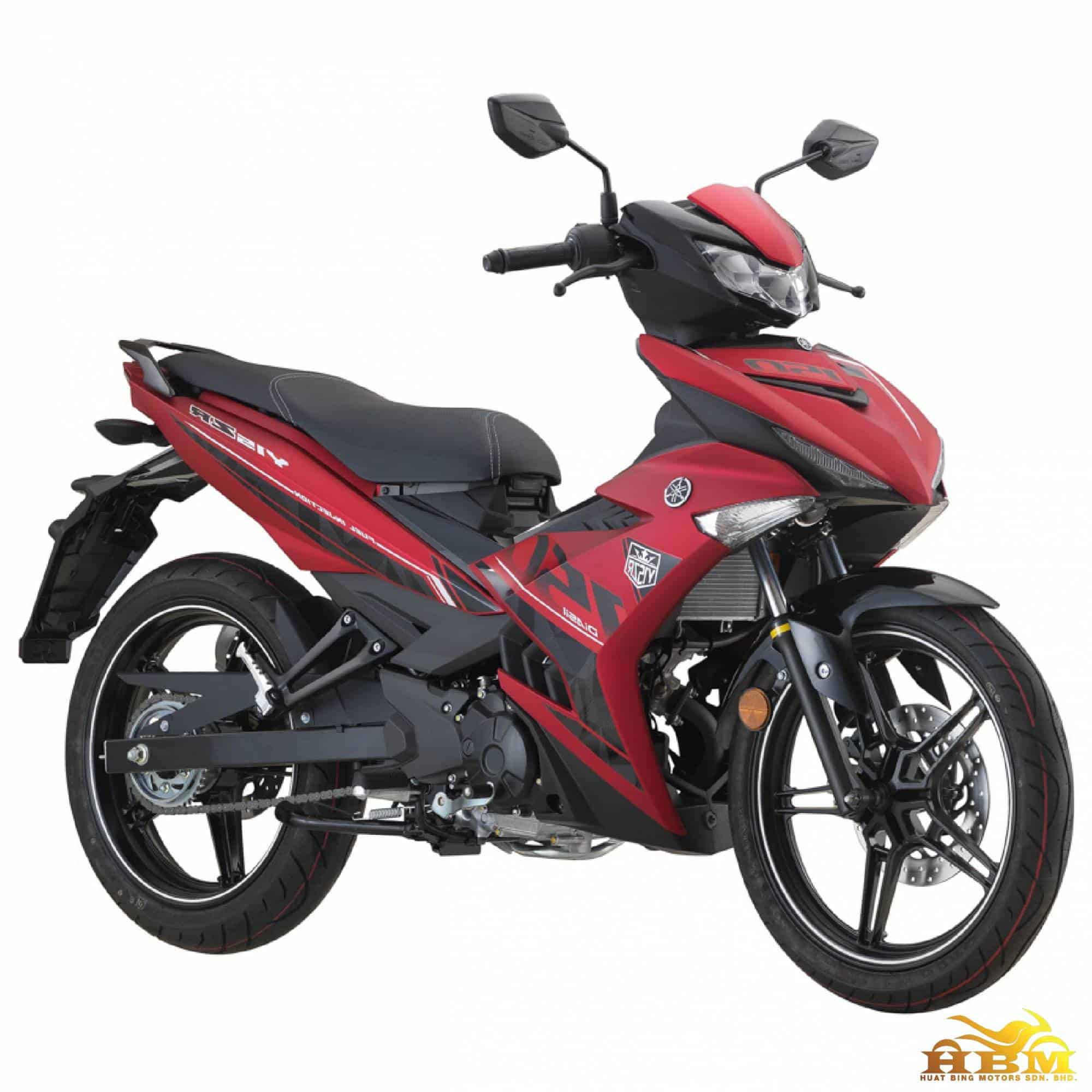

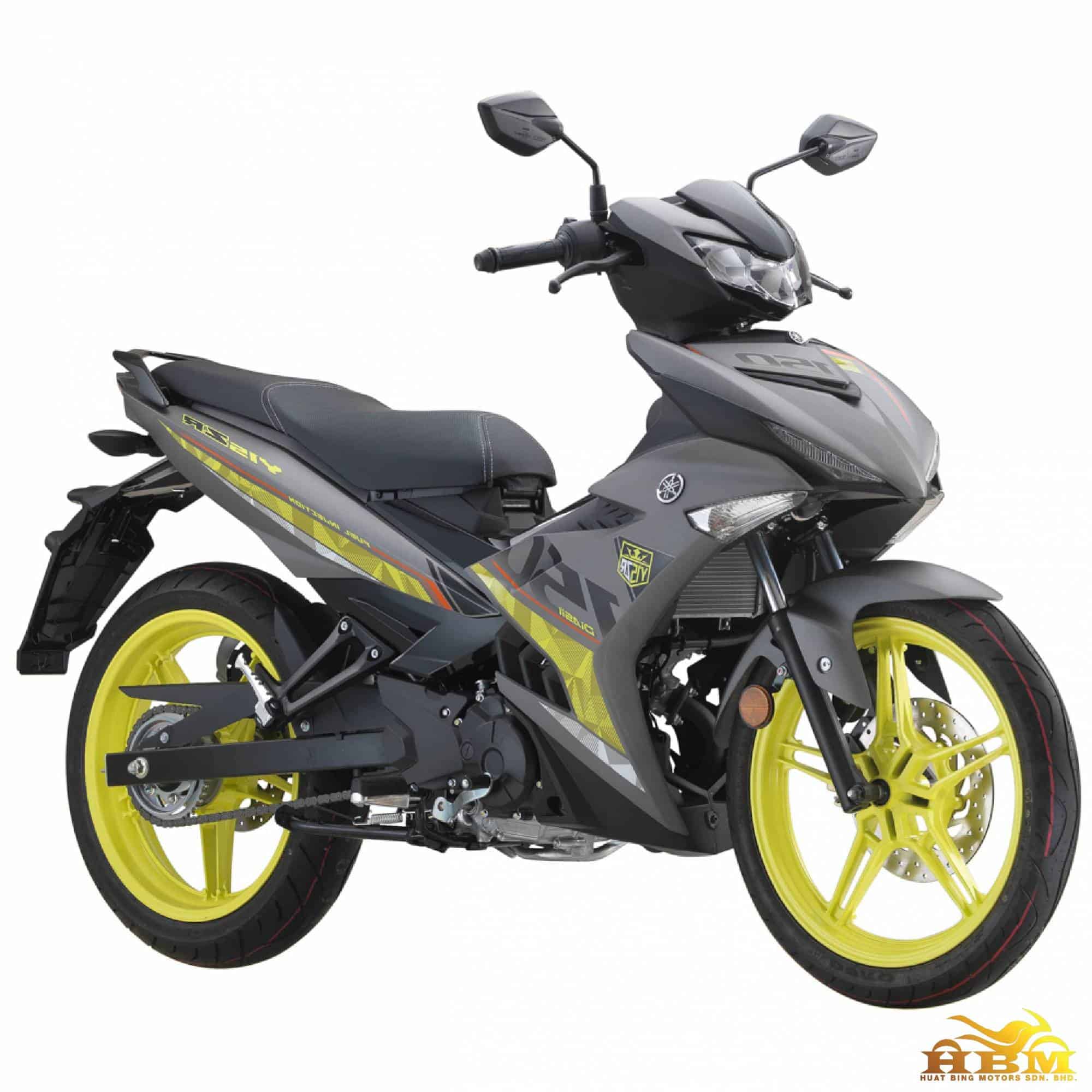

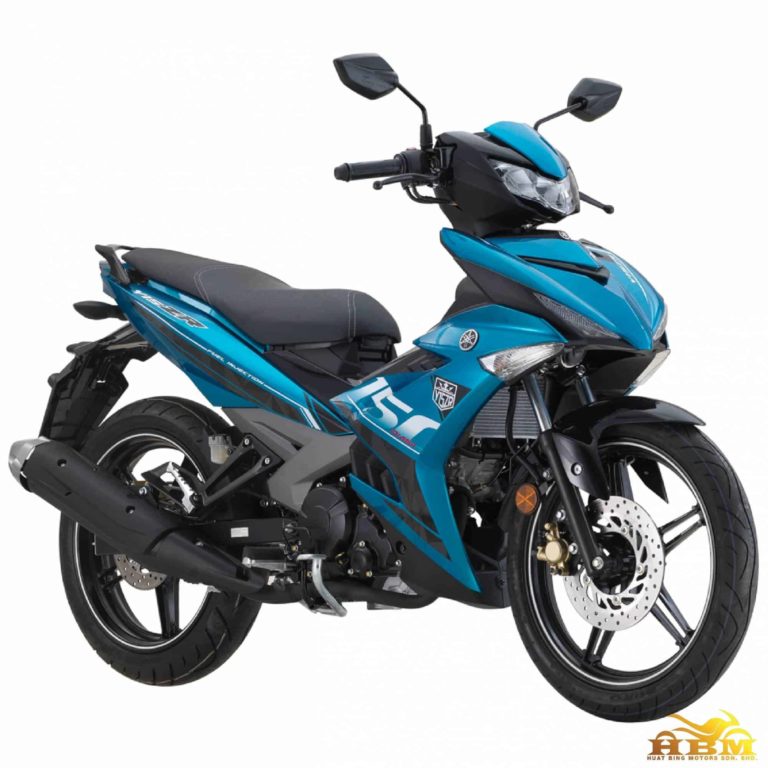

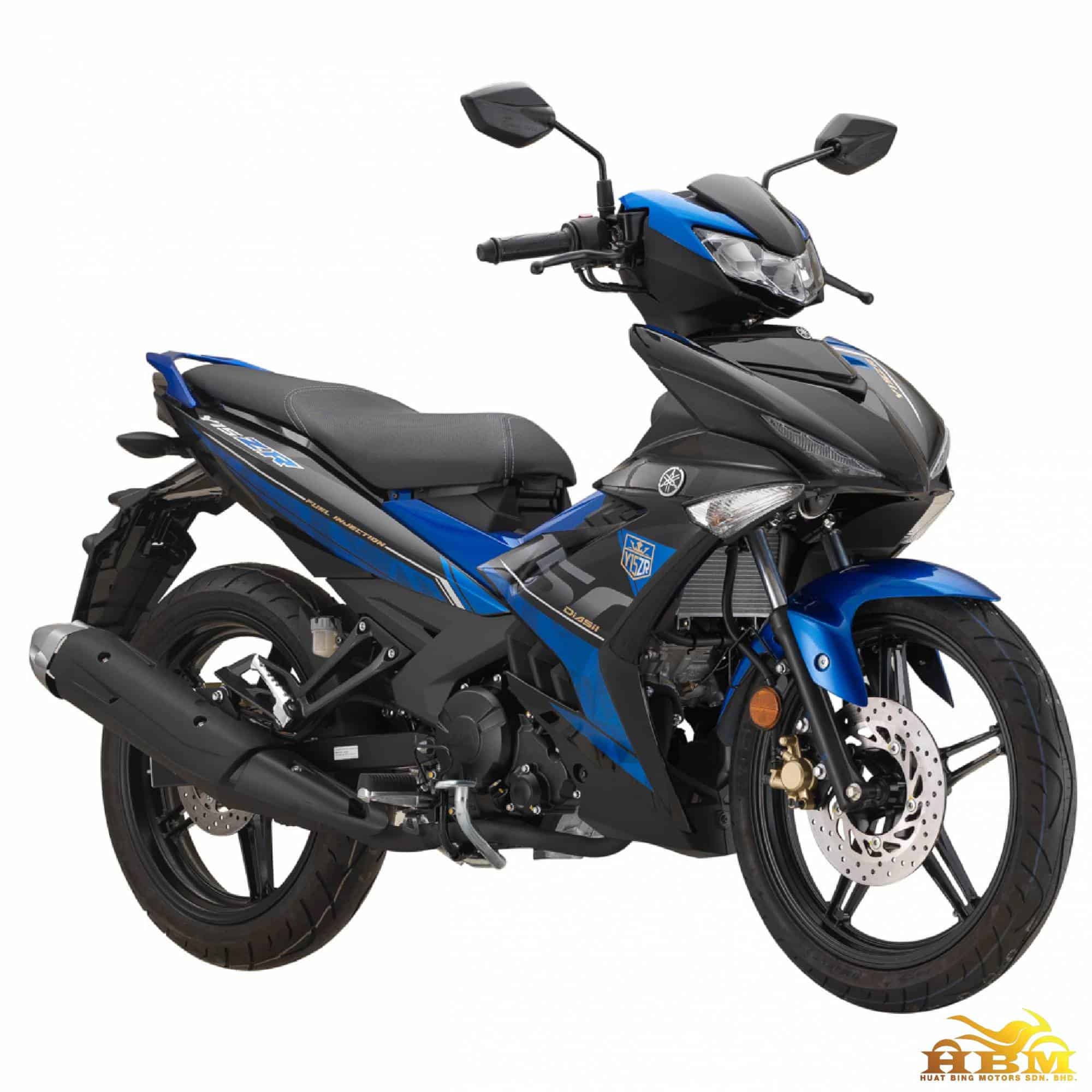

YAMAHA Y15ZR V2
Head modern lights and LCD meter panel.
Color:
ENGINE
CHASIS
DOWNLOAD
ENGINE
| ENGINE | |||
| Type | Liquid-cooled, 4-stroke SOHC | ||
|---|---|---|---|
| Cylinders | Single Cylinder | ||
| Bore X Stroke | 57.0 x 58.7 mm | ||
| Compression Ratio | 10.4:1 | ||
| Maximum Horsepower | 11.3kW (8,500rpm) | ||
| Maximum Torque | 13.8kW (7,000rpm) | ||
| Starting System | Electric | ||
| Lubrication System | Wet Sump | ||
| Engine Oil Capacity | 1.15 Litres | ||
| Fuel Tank Capacity | 4.2 Liters | ||
| Fuel System | Fuel Injection | ||
| Ignition System | TCI | ||
CHASIS
| CHASIS | |||
| Frame Type | Backbone | ||
|---|---|---|---|
| Overall Length | 1960mm | ||
| Overall Width | 670mm | ||
| Overall Height | 1080mm | ||
| Wheelbase | 1290mm | ||
| Minimum Ground Clearance | 135mm | ||
| Weight | 115kg | ||
