YAMAHA LC135 V4 (AUTO CLUTCH)
The long-awaited one has arrived. Here comes the new stylish and exciting Yamaha 135LC for the Malaysia road. Comes with excellent features to make your ride more solid and ready to conquer everything! What are you waiting for? Get your Yamaha 135LC from Yamaha authorized dealers today!

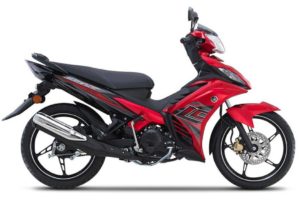

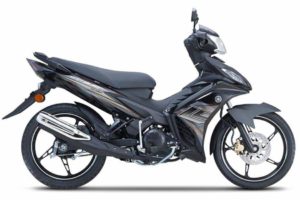

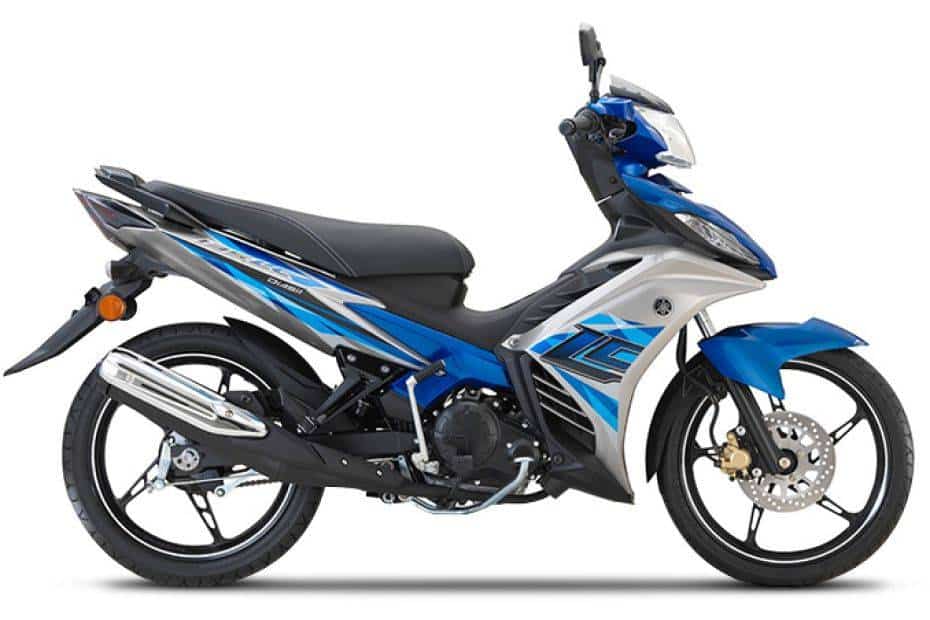

Color:
ENGINE
CHASIS
DOWNLOAD
ENGINE
| ENGINE | |||
| Cylinders | Single Cylinder | ||
|---|---|---|---|
| Displacement | 134cm3 | ||
| Bore x Stroke | 54.0 x 58.7mm | ||
| Compression Ratio | 10.9:1 | ||
| Maximum Horsepower | 8.93kW (8,500rpm) | ||
| Maximum Torque | 11.79Nm (5,500rpm) | ||
| Starting System | Electric and Kick | ||
| Lubrication System | Wet Sump | ||
| Engine Oil Capacity | 0.9 Litres | ||
| Fuel Tank Capacity | 4.0 Liters | ||
| Carburetor | BS25 x 1 | ||
| Ignition System | DC-CDI | ||
| Headlight | 12v, 35W/35W | ||
CHASIS
| CHASIS | |||
| Frame Type | Diamond | ||
|---|---|---|---|
| Overall Length | 1960mm | ||
| Overall Width | 695mm | ||
| Seat Height | 775mm | ||
| Minimum Ground Clearance | 130mm | ||
| Dry Weight | 105kg | ||
